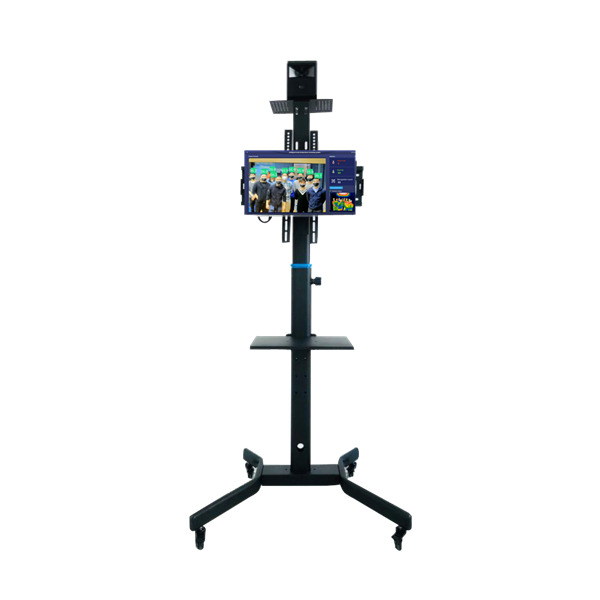

AI Fever recognition screening system face recognition support 10 peoples check same time
The RCD-AI Fever Screening System is designed to capture and recognize human faces, and test the forehead temperatures simultaneously. It's used to find out fever personals and give an initial warning for public safety and health purpose.
Features
① Face recognition + forehead temperature testing
② Android operating system
③ Artificial technology based algorithm guarantee accurate testing result and minimize ambient interference.
④ Support mask and glasses mode, minimize potential virus risks
⑤ Plug and play, easy installation
Specifications
| Visible light |
| Resolution | 1920×1080 |
| focal length | 8mm |
| Temperature testing |
| Temperature range | 20℃~45℃ |
| Accuracy | ≤ ± 0.3 ℃ (target temperature: 32 ℃ ~ 42 ℃) |
| NETD | 60mk |
| Temperature correction | Built-in black body,real-time calibration |
| measure time | <500ms |
| Measuring distance | 1 ~ 2 meters, best 1 meter, |
| interface |
| Thermometer | RJ45 |
| Facial recognition camera | USB |
| Integrate Android Sever | Power cable |
| Environmental adaptability |
| Operating temperature | 16 ~ 32 °C accurate temperature measurement |
| storage temperature | -20~60℃ |
| Working humidity | <90% (non-condensing) |
Software
- Dual-spectrum camera, all-weather real-time monitoring
- visible light for face recognition, and thermal imaging for body temperature monitoring
- Recognize faces accurately through face recognition algorithms
- Measure the temperature of the human face
- Dynamic on-screen temperature displayed
- Big data statistics: When a large amount of high-temperature data is found, alert the management staff in a timely manner.
- Interface and sound abnormal alarm
- Device settings, Record and personnel managemen
Built-in black-body real-time calibration
Personnel Entry (explained in single mode)
Image:
Test picture
Recognize faces and measure temperature
Face recognition and temperature measurement (in mask mode)
System Captures and traces forehead only, ambient temperature abnormal target (lighter, cigarette,etc) do NOT influence the accuracy
Applications
This system can be widely used in hospitals, railway stations, hotels, airports, schools, kindergartens, customs, supermarkets, governments, administrative halls, and enterprises, etc.
